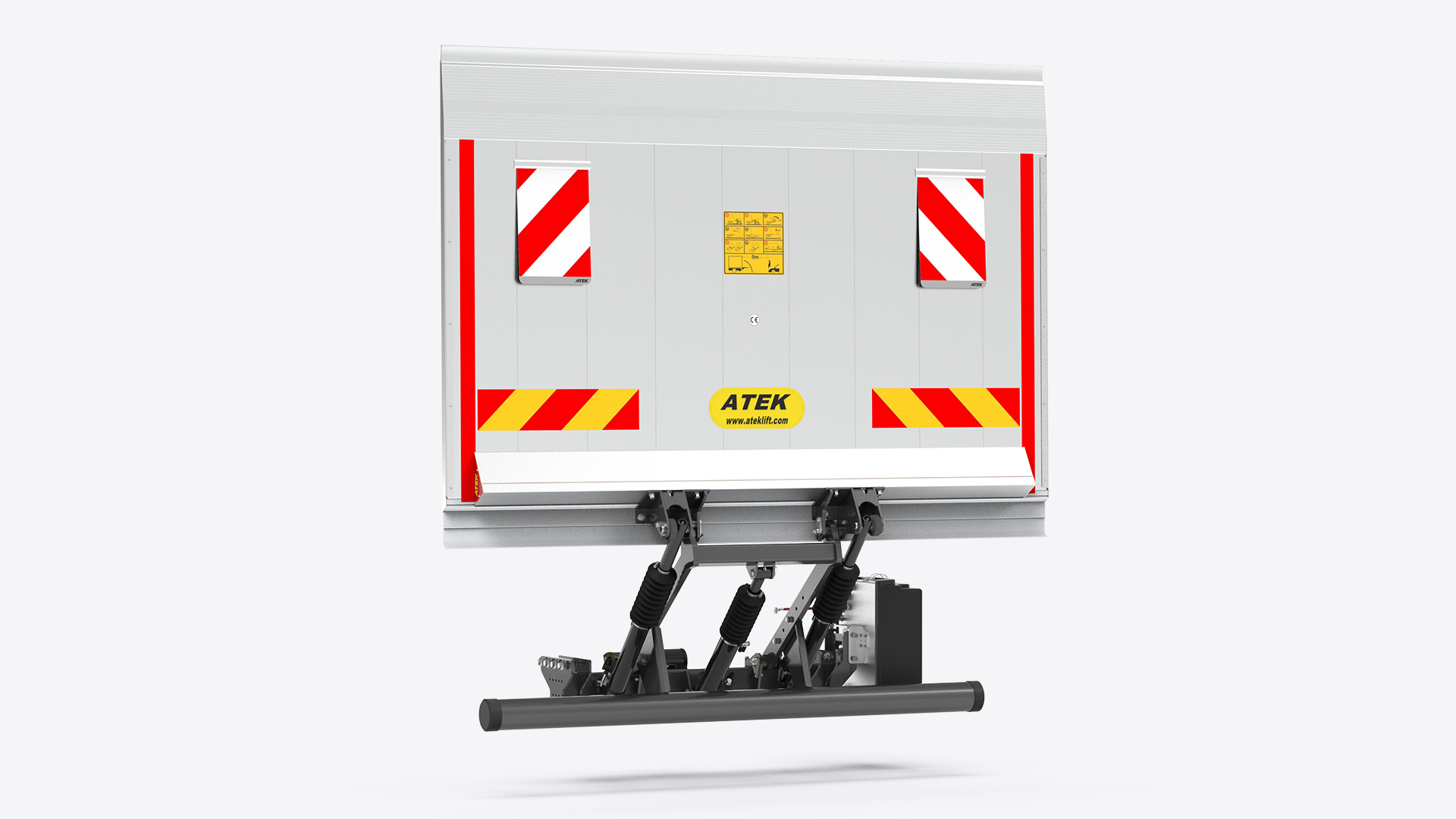

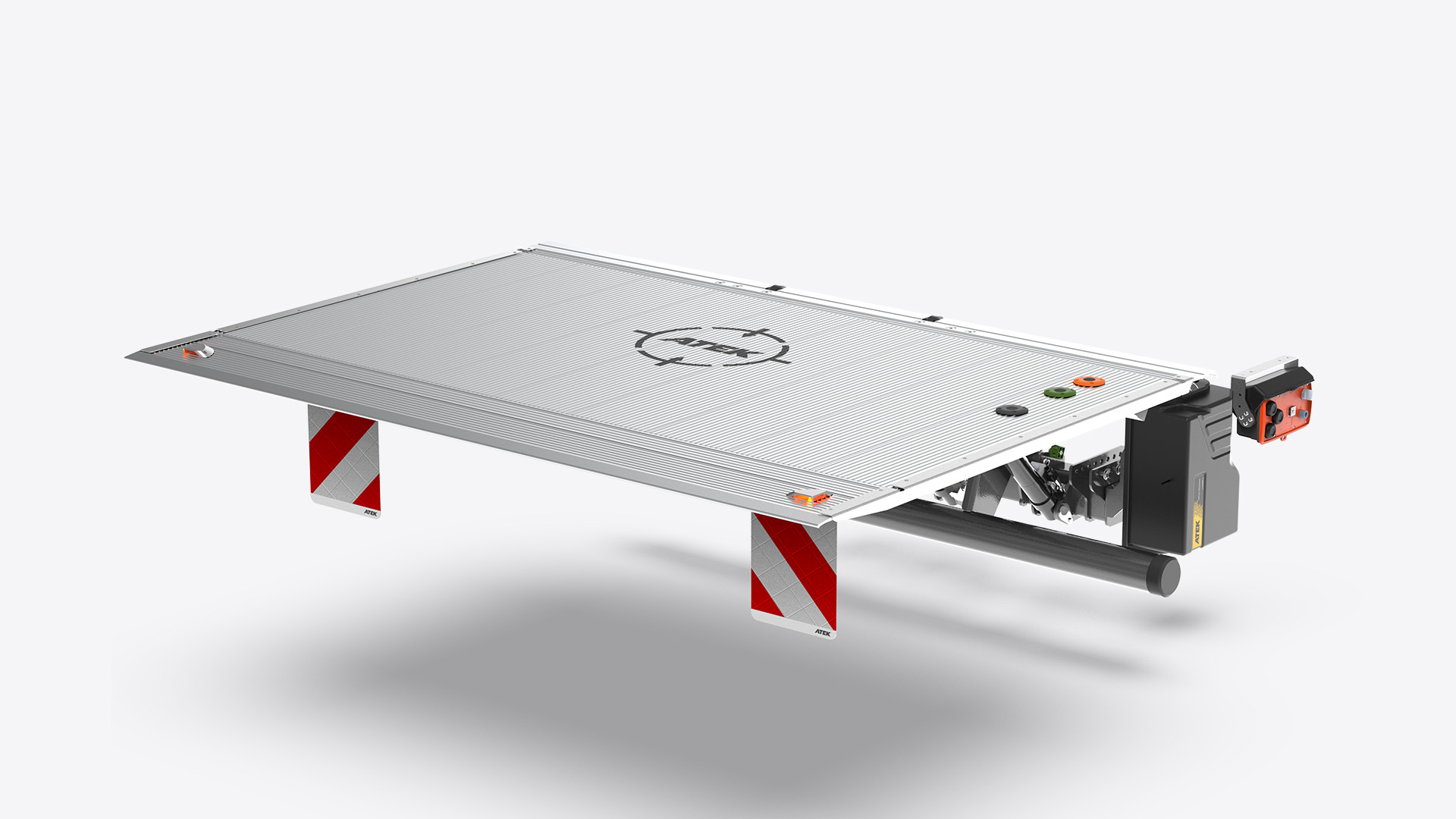

The ATEK Lift P3750 Light Truck Lift is a versatile and compact tailgate lift solution developed specifically for N1 class vehicles.
The P3750 Series, thanks to its structure designed specifically for N1 class vehicles, supports use of the same lift body with different connection brackets. This expands vehicle compatibility.
The P3750 Light Truck Lift offers a lightweight solution for N1 class vehicles with a total weight starting from 192 kg. This structure:

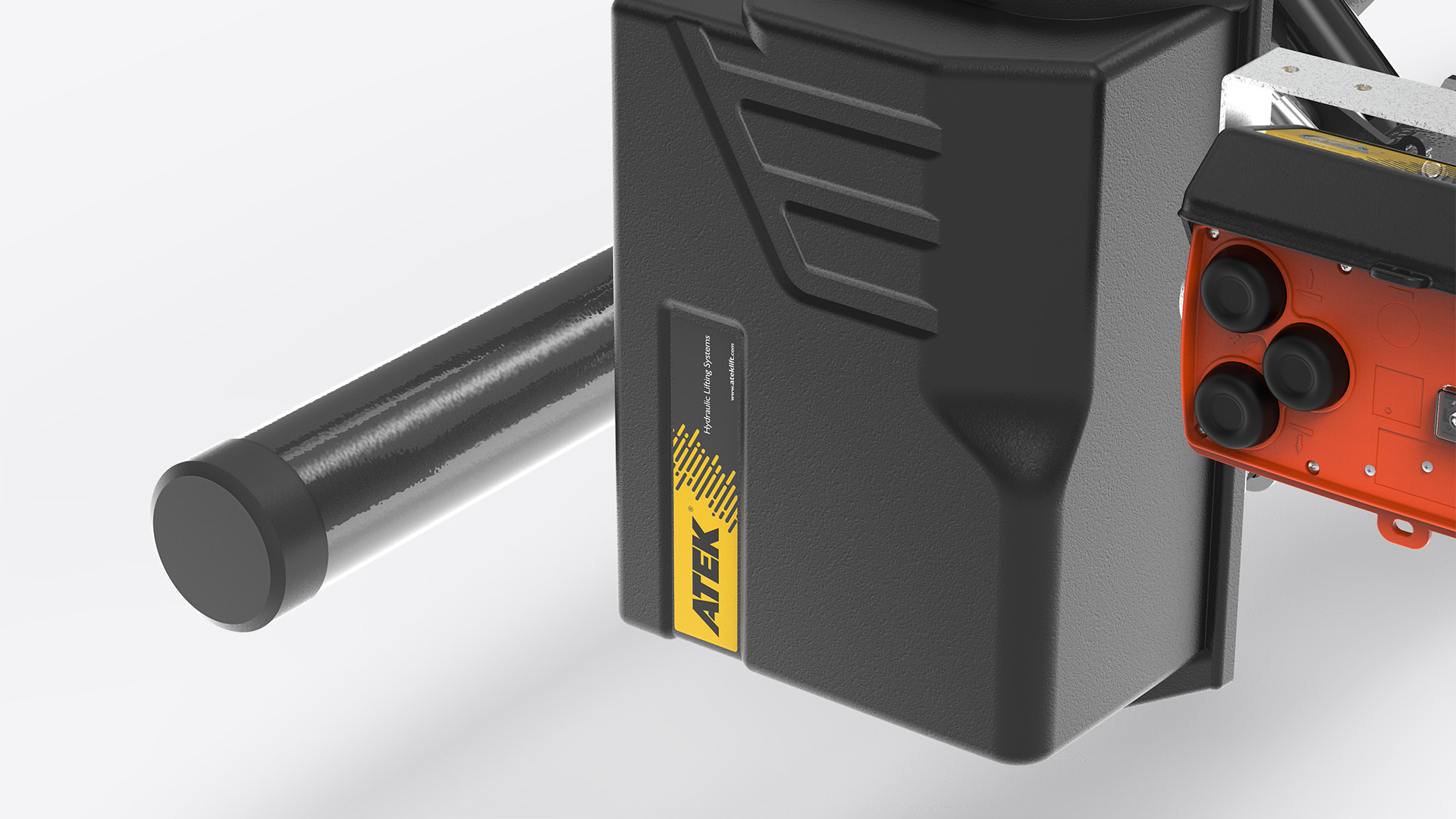

The P3750, thanks to its hydraulic system equipped with 2 folding and 1 lifting cylinders, delivers stable lifting performance. This structure provides controlled movement under load.
| a(mm) | Q (kg) |
| 600 | 750 |
| 750 | 600 |
| 1000 | 450 |
| 1400 | 300 |
Type Width Height Net Weight ALM30 2200mm 1800mm 106kg ALM30 2200mm 1600mm 96kg ALM30 2200mm 1400mm 86kg ALM30 2200mm 1200mm 76kg
Arm Lengths 650mm H 1060mm F(max) 510mm F(min) 250mm G(max) 550mm D(max) 705mm D(min) 620mm
