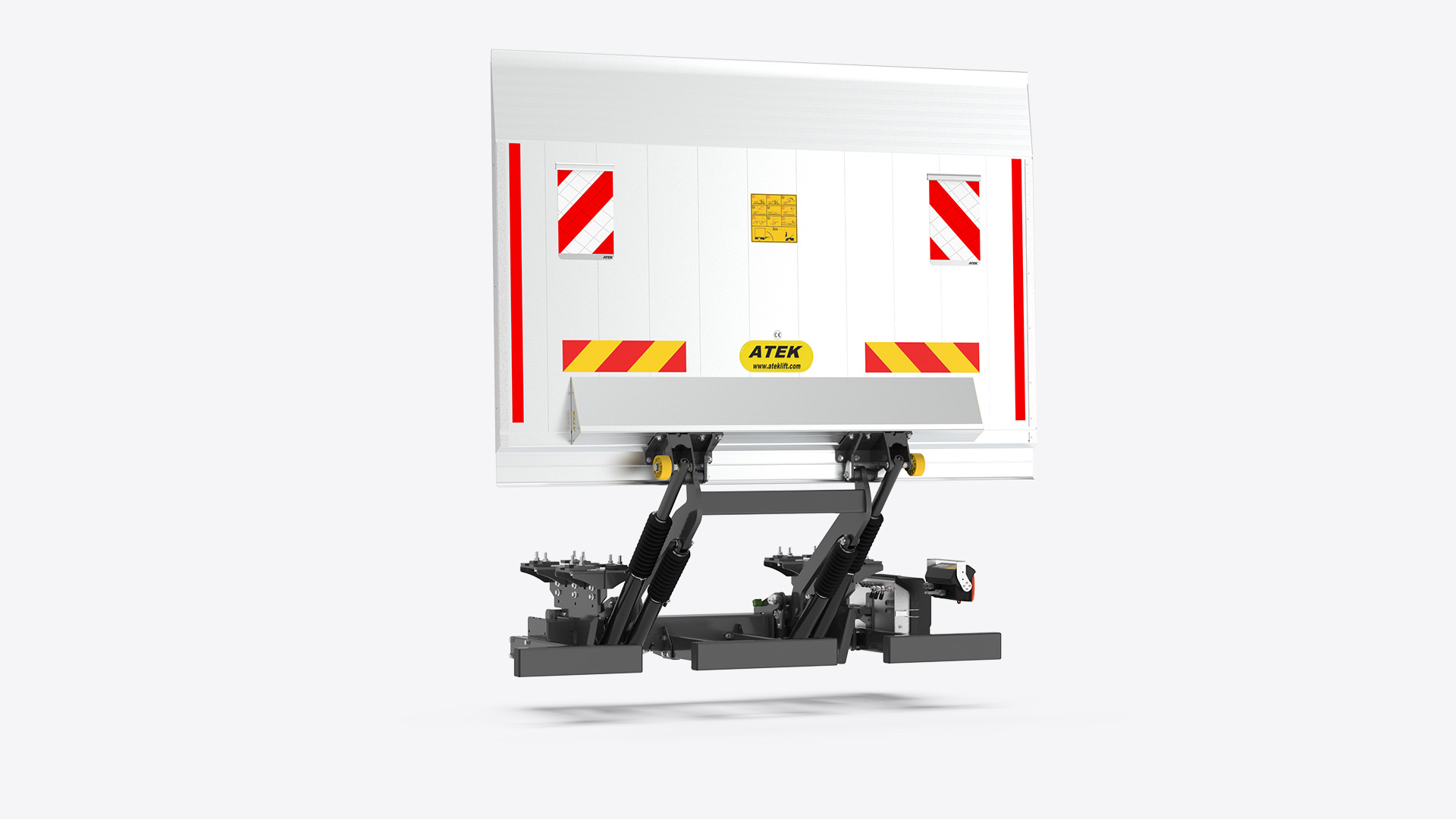

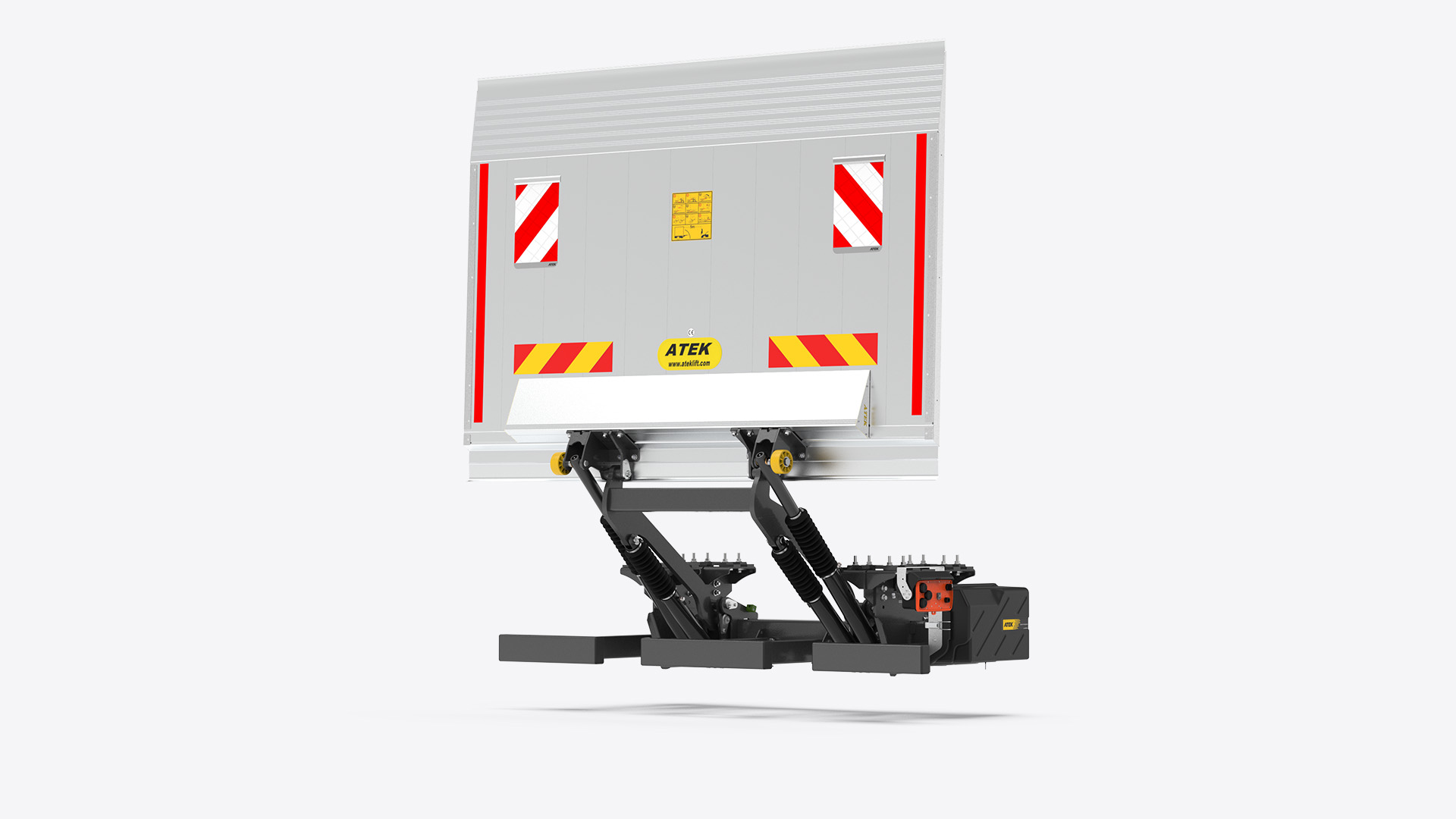

The ATEK Lift DMT2000 is a heavy-duty tailgate lift system developed specifically for semi-trailer dorse chassis. The suspended mounting system provides reliable performance under heavy loads.
The DMT2000 is designed for full compatibility with I-type trailer chassis. Thanks to the suspended mounting system, it can be easily integrated onto the chassis.
Thanks to the placement of the balance arms between the two chassis rails, no obstacles are encountered during loading. This design provides:
Thanks to the suspended-system design of the DMT2000, installation can be completed in approximately 2 hours. This means less downtime in service for vehicles.
The DMT2000 provides a safe solution for users who want to keep the rear door closed. This feature:
| a(mm) | Q (kg) |
| 750 | 2000 |
| 1000 | 1500 |
| 1500 | 750 |
Type Width Height Net Weight ALM45 S 2500mm 1800mm 122kg ALM45 S 2500mm 1600mm 127kg ALM45 S 2200mm 1800mm 137kg
Arm Lengths 750mm 820mm 880mm 950mm H 1235mm 1320mm 1430mm 1510mm F(max) 635mm 685mm 730mm 780mm F(min) 250mm 300mm 350mm 400mm
