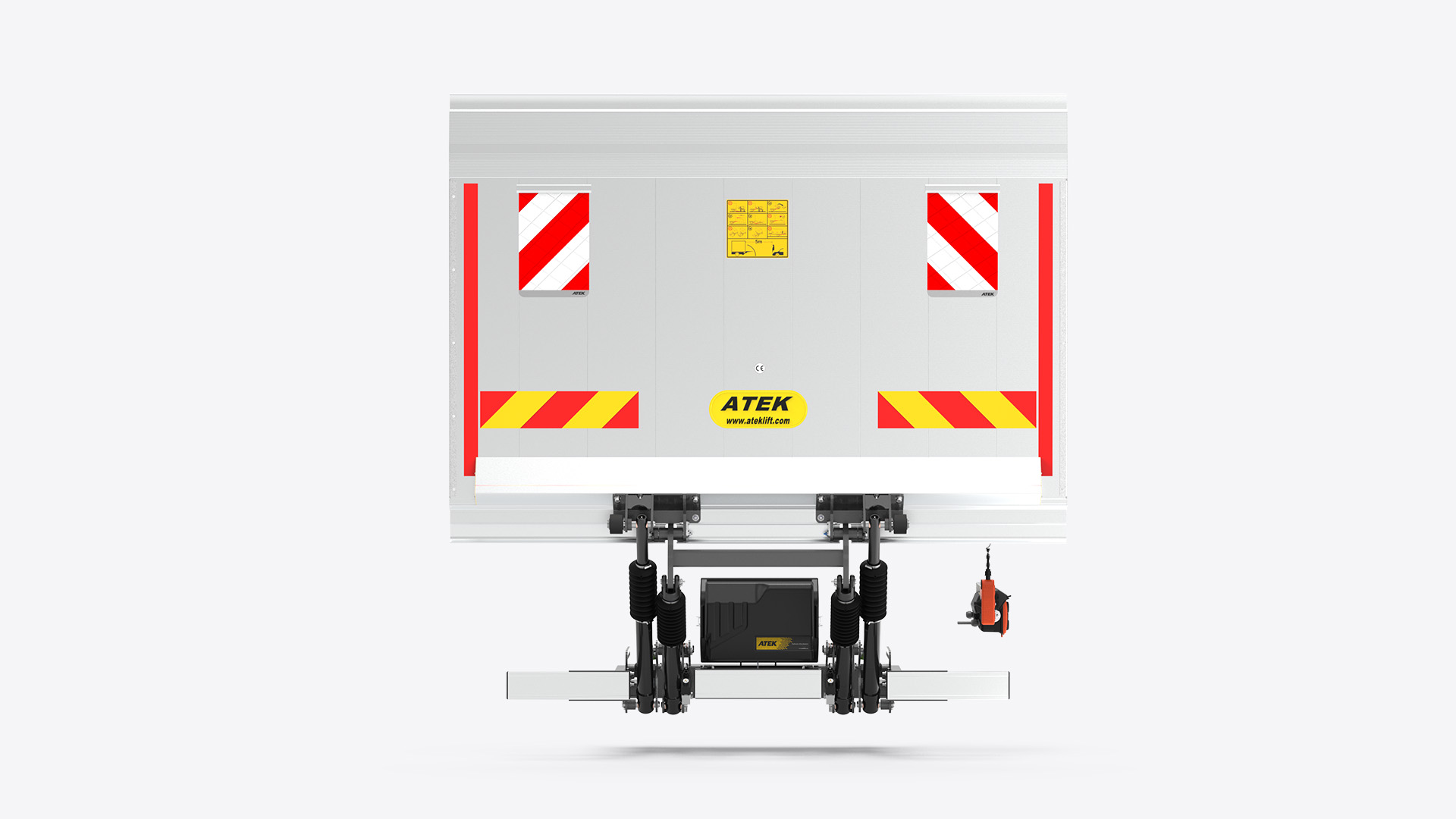

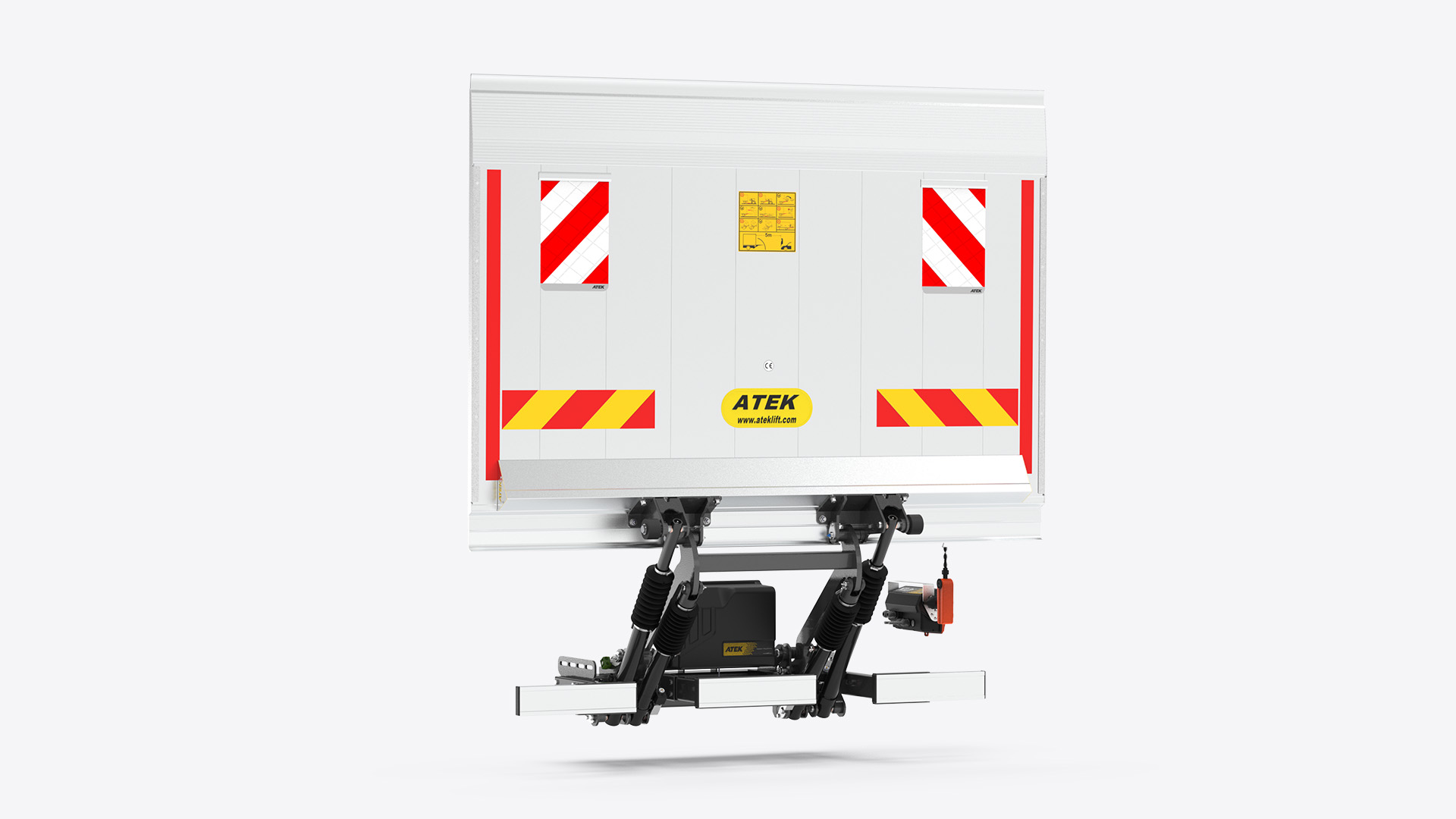

The ATEK Lift DMN 1000 preserves the technical strength of the DM 1000 series while delivering a custom-designed solution for PSA group vehicles (Fiat Ducato, Peugeot Boxer, Opel Movano, Citroen Jumper).
Unlike our standard DM series lifts, the DMN series is integrated onto its own main body, with a sliding mechanism for forward/backward movement.

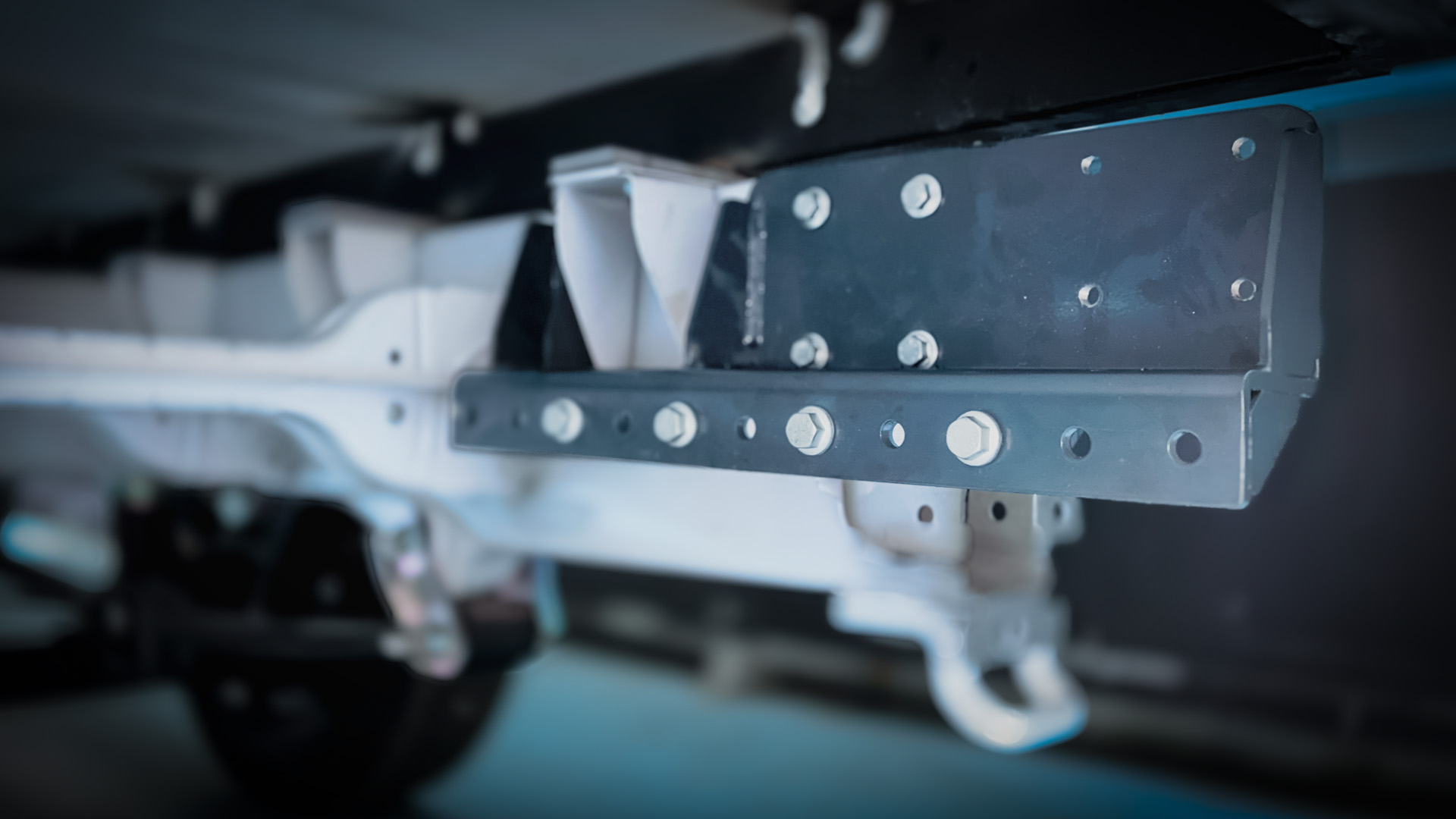

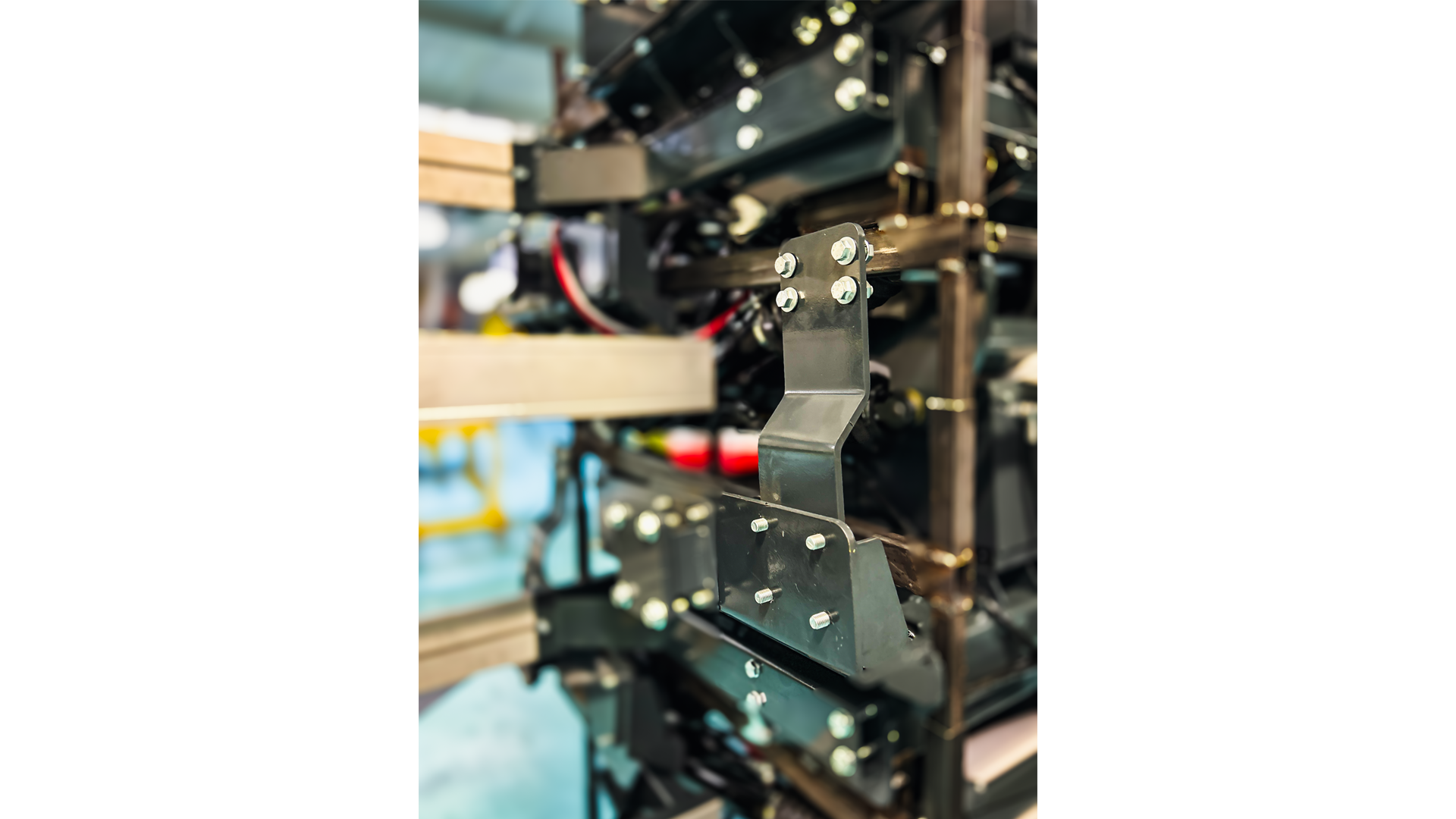

The DMN 1000, thanks to specially designed chassis connection brackets, uses the factory-issued connection holes on the chassis — without requiring additional drilling.
Using a standard lift on narrow-chassis vehicles can cause mounting problems, premature wear, and unstable operation. The DMN 1000 has been engineered to eliminate these risks.
The fundamental approach of the DMN 1000 is clear: not the same lift for every vehicle, but the right lift for the right vehicle. This product is designed specifically for narrow-chassis vehicles.
The aluminum bumper structure used in the DMN 1000 strikes the ideal balance between the product's lightness goal and safety requirements.
| a(mm) | Q (kg) |
| 600 | 1000 |
| 750 | 800 |
| 950 | 600 |
| 1400 | 400 |
Type Width Height Net Weight ALM30 2200mm 1800mm 106kg ALM30 2200mm 1600mm 96kg ALM30 2200mm 1400mm 86kg ALM30 2200mm 1200mm 76kg
Arm Lengths 575mm 650mm 750mm H 940mm 1060mm 1185mm F(max) 465mm 510mm 575mm F(min) 250mm 250mm 300mm G(max) 475mm 550mm 620mm D(max) 685mm 745mm 815mm D(min) 525mm 575mm 660mm
