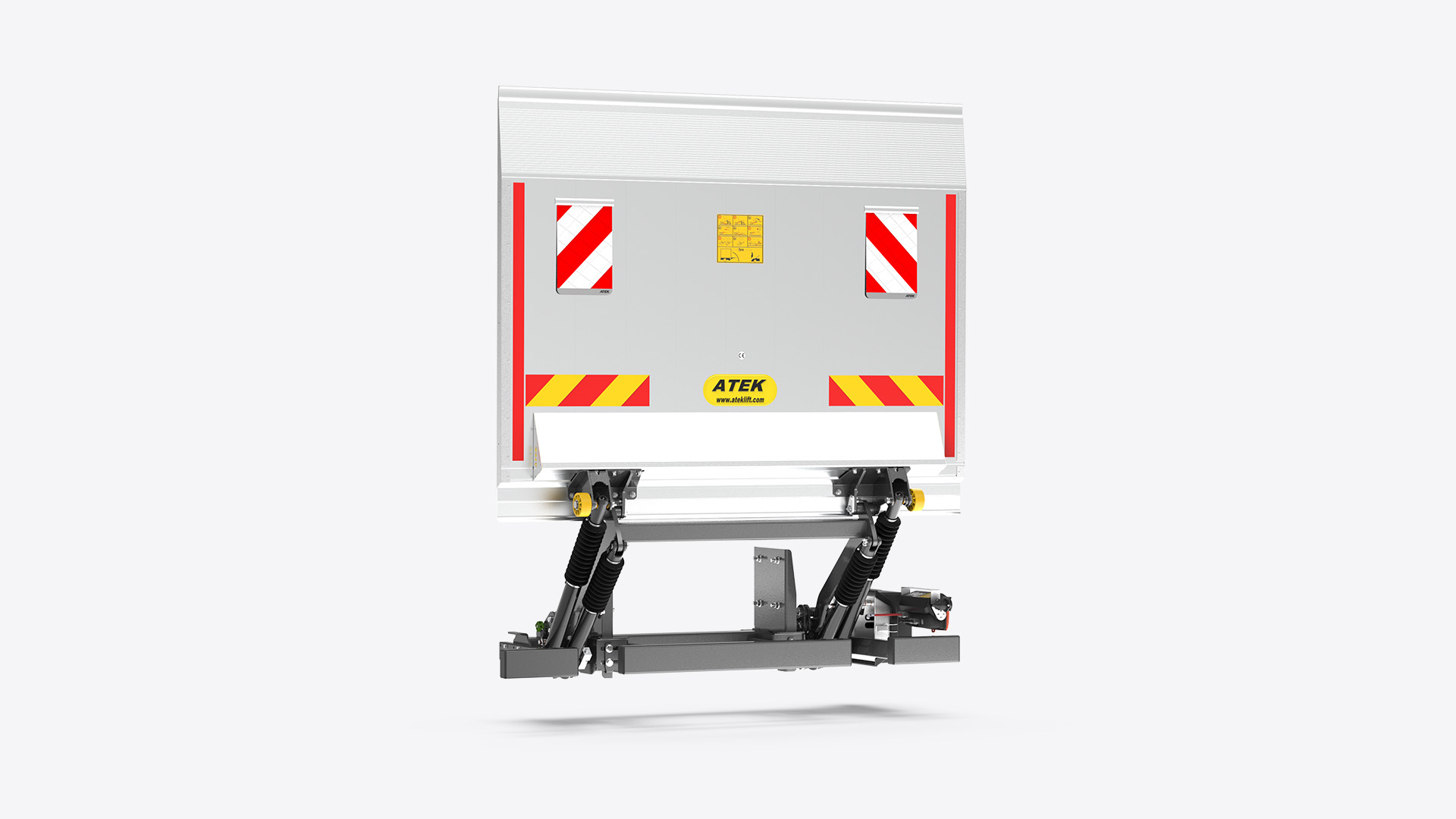

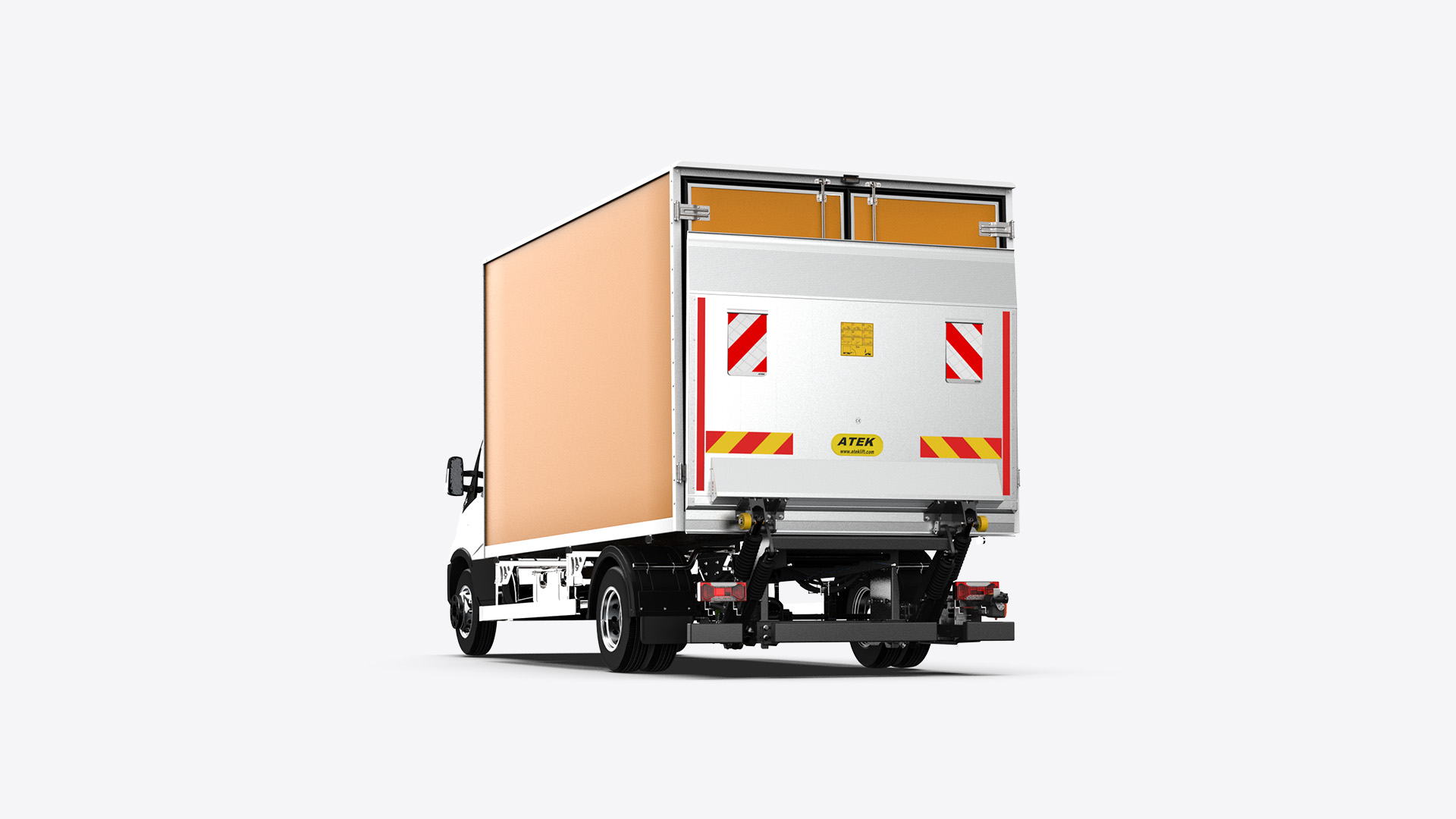

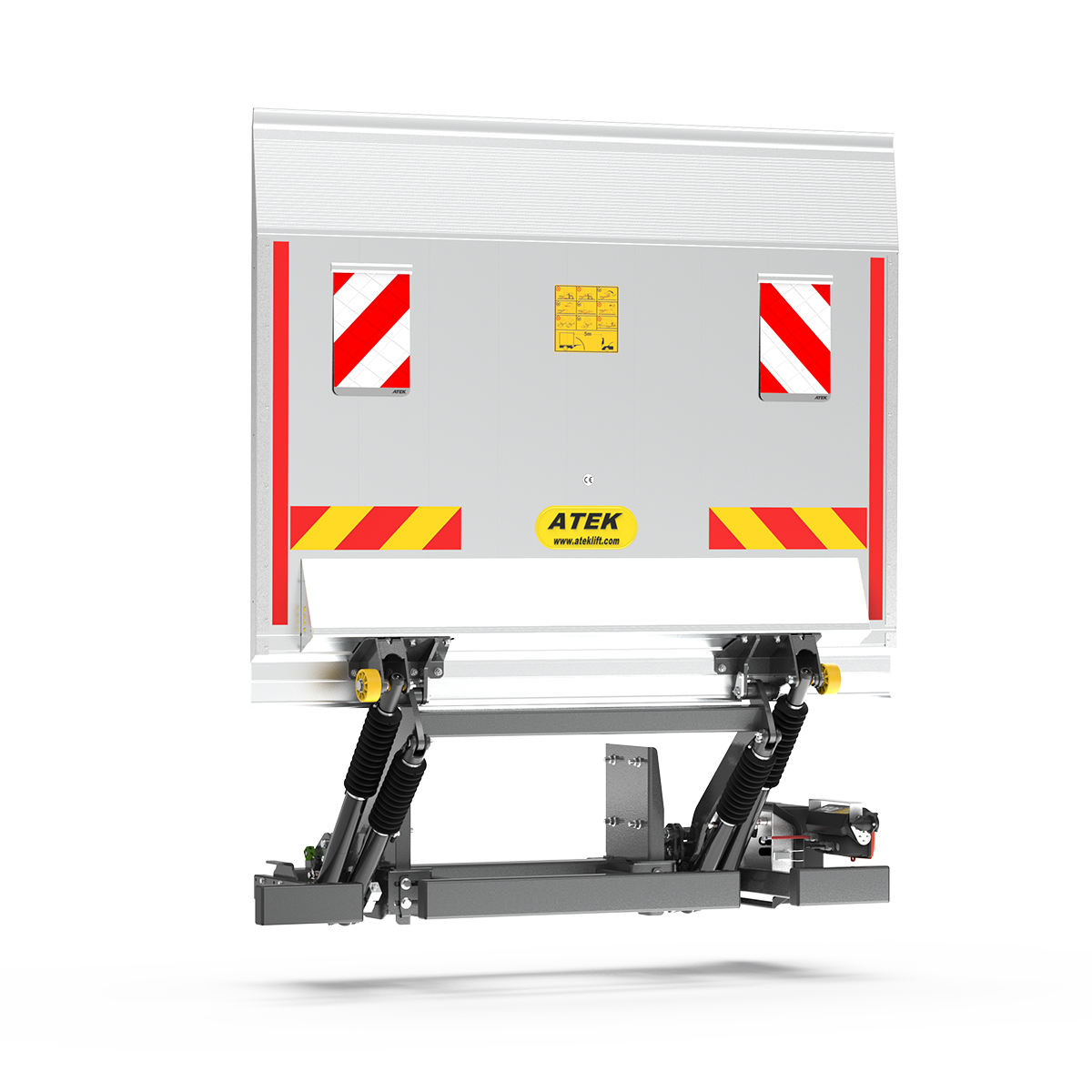

The ATEK Lift DM1500L is a lightweight version of the DM1500 series, developed for mid-segment trucks. It delivers the same engineering quality with reduced system weight.
The DM1500L is approximately 70 kg lighter than the standard DM1500 model. This represents a weight advantage of about 21%, providing direct benefits to operational capacity.
The 70 kg weight advantage offered by the DM1500L is reflected directly in the vehicle's payload capacity. This means:

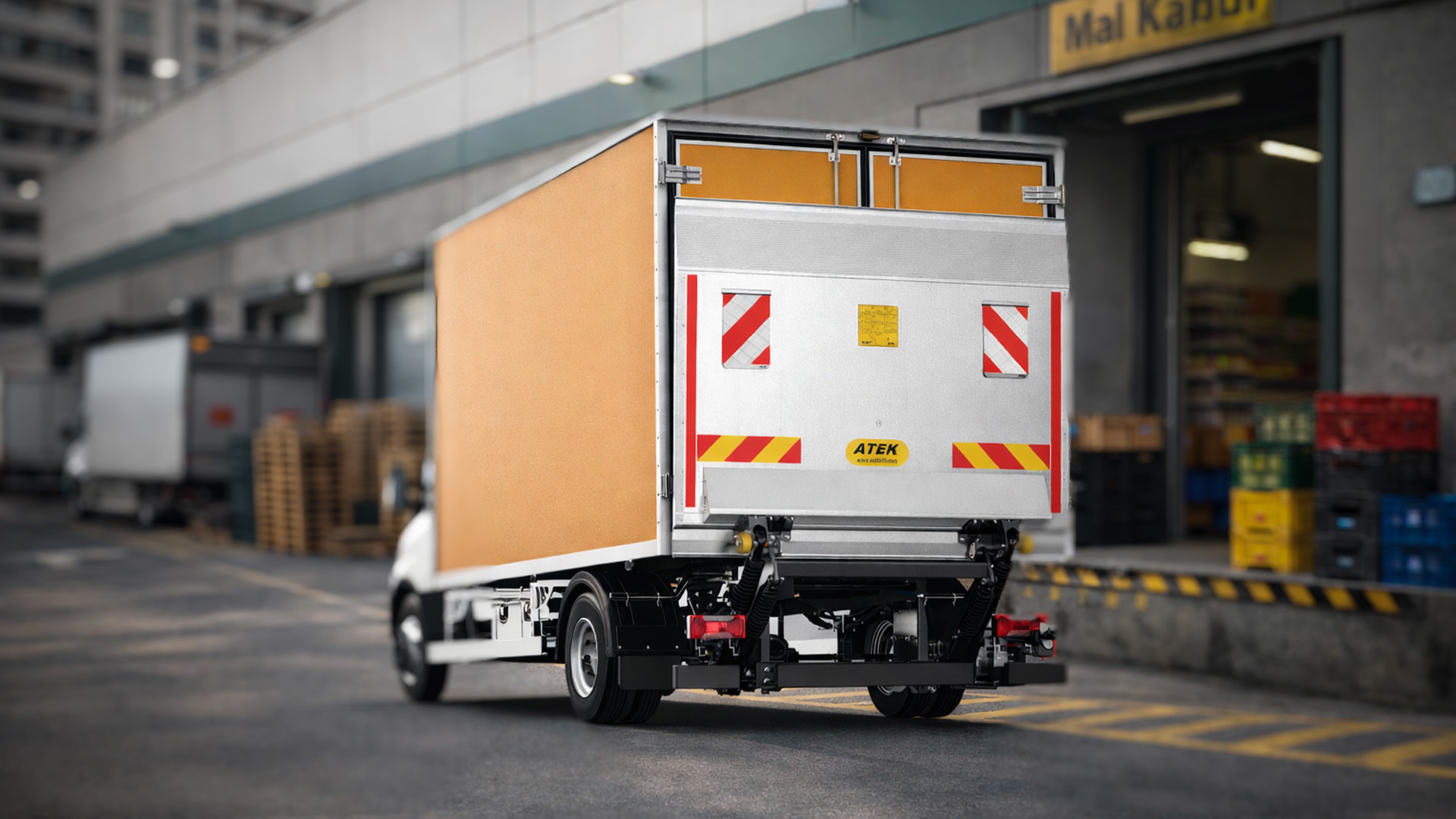

The DM1500L is optimized for trucks that perform daily urban transfers. Thanks to its lightweight structure, it provides reliable performance in frequent stop-and-go operations.
The DM1500L preserves the carrying power of the DM1500 while offering lower system weight. It delivers a more balanced and efficient solution for mid-segment trucks.
| a(mm) | Q (kg) |
| 600 | 1500 |
| 750 | 1200 |
| 950 | 900 |
Type Width Height Net Weight ALM45 2500mm 1800mm 112kg ALM45 2200mm 1800mm 102kg ALM45 2200mm 1600mm 85kg
Arm Lengths 700mm 800mm 880mm H 1150mm 1250mm 1350mm F(max) 560mm 620mm 670mm F(min) 300mm 350mm 400mm G(max) 590mm 630mm 700mm
