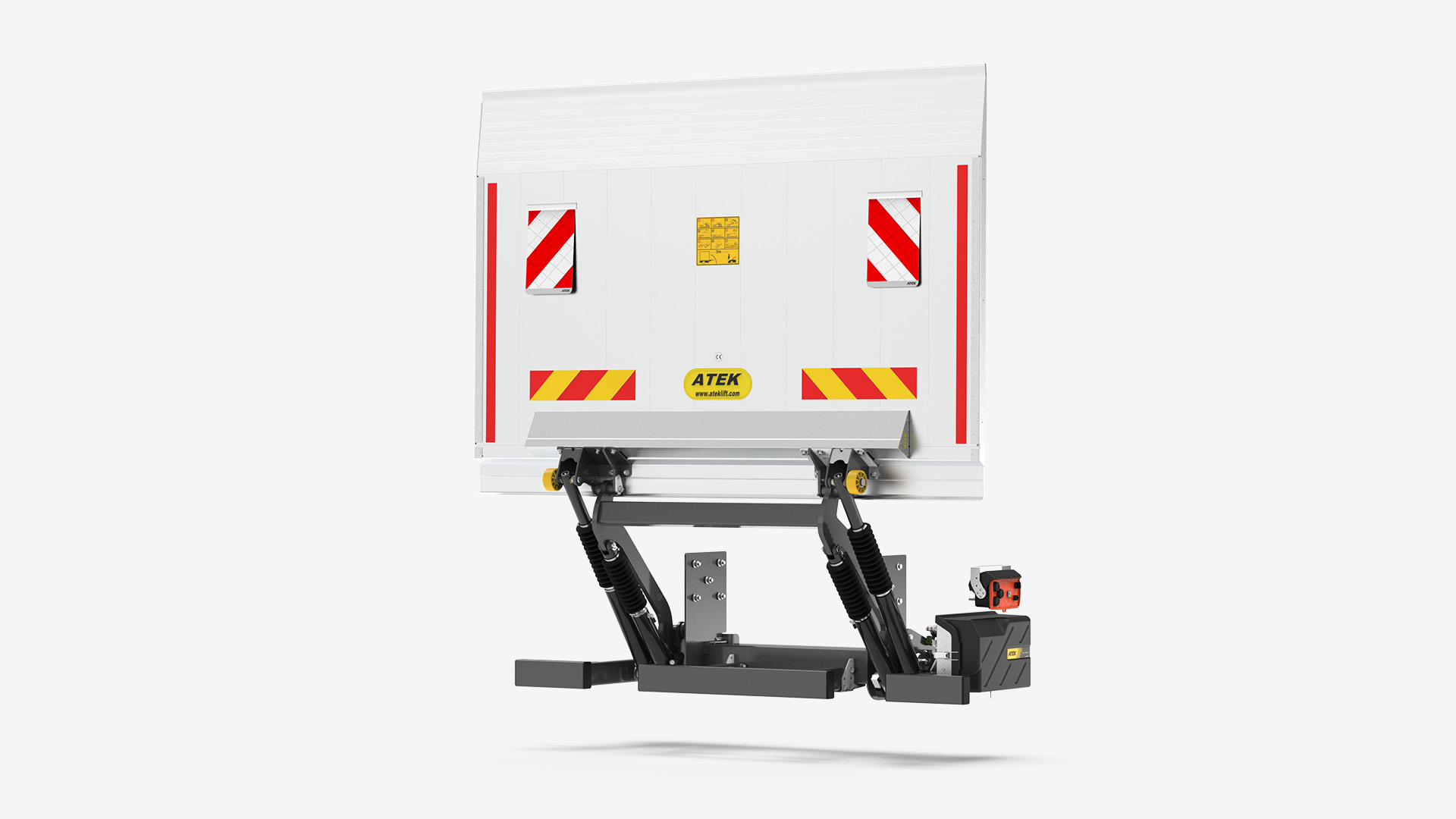

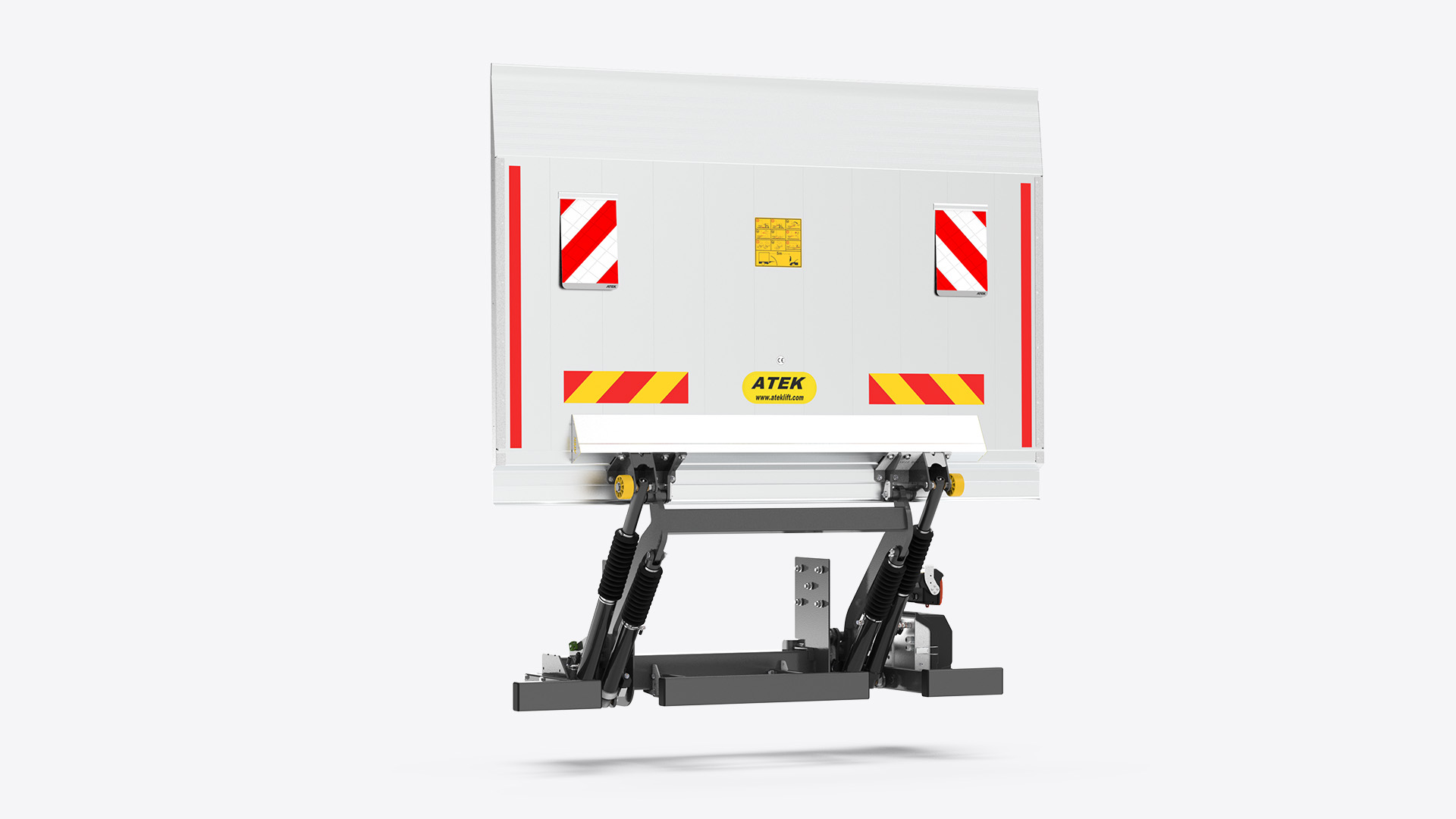

The ATEK Lift DM 1500 Series is a heavy-duty tailgate lift solution designed specifically for trucks with a gross carrying capacity of 7.5 tons and above. With balanced power, durable construction, and high vehicle compatibility, it stands out for daily distribution and long-haul transportation.
The DM 1500 Series is equipped with a four-piston hydraulic structure and mechanical-type automatic folding technology. This system maintains platform stability and provides controlled movement under load.
The DM 1500 Series integrates easily into the truck chassis thanks to bolt-on mounting plates. This approach:
The DM 1500 Series is designed to deliver the same reliability whether for urban distribution or intercity transportation operations.
The DM 1500 Series is developed to be compatible with trucks of different makes and models. Applicable vehicles include various heavy-duty truck brands.
| a(mm) | Q (kg) |
| 750 | 1500 |
| 1000 | 1250 |
| 1500 | 1000 |
Type Width Height Net Weight ALM45 S 2500mm 1800mm 122kg ALM45 S 2500mm 1600mm 127kg ALM45 S 2200mm 1800mm 137kg ALM45 S 2200mm 1600mm 102kg ALM45 S 2200mm 1400mm 85kg

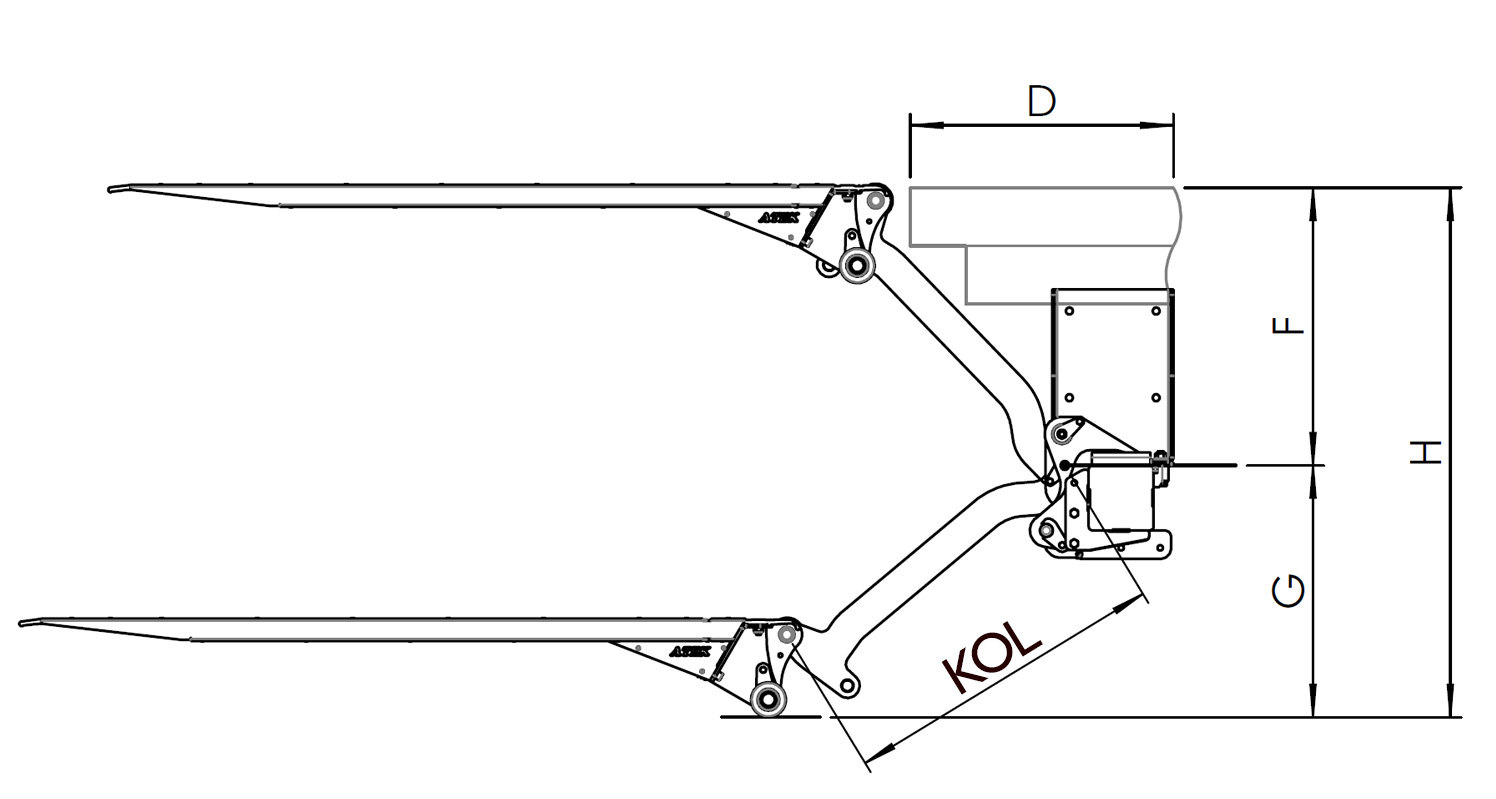

Arm Lengths 750mm 820mm 880mm 950mm H 1235mm 1320mm 1430mm 1510mm F(max) 635mm 685mm 730mm 780mm F(min) 250mm 300mm 350mm 400mm G(max) 600mm 635mm 700mm 730mm
