The ATEK Lift DM 1000 Series is a professional tailgate lift solution developed for trucks in the 3.5–7.5 ton range. Designed for daily distribution operations, this series stands out with its balanced power, durable structure, and high vehicle compatibility.

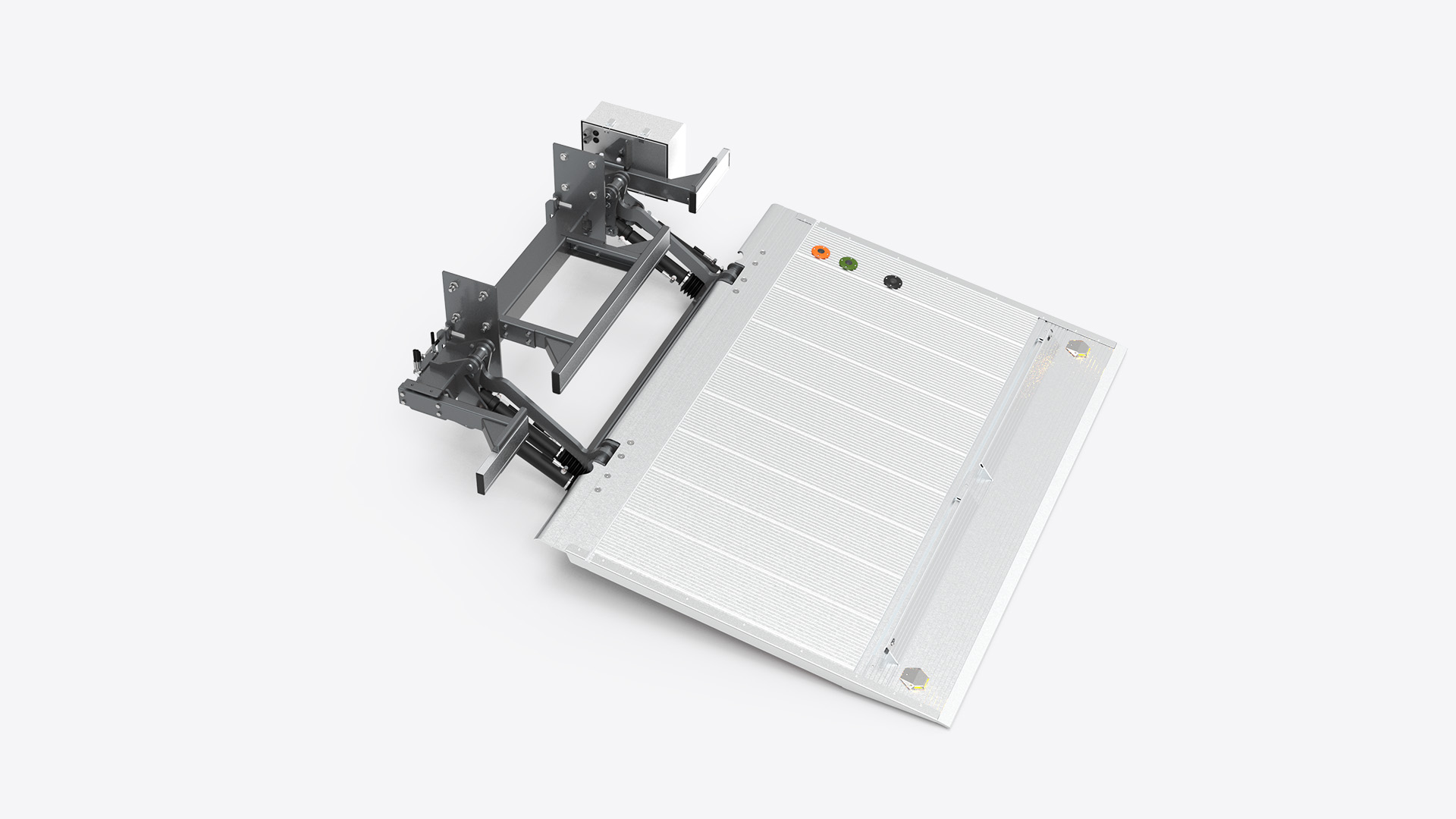

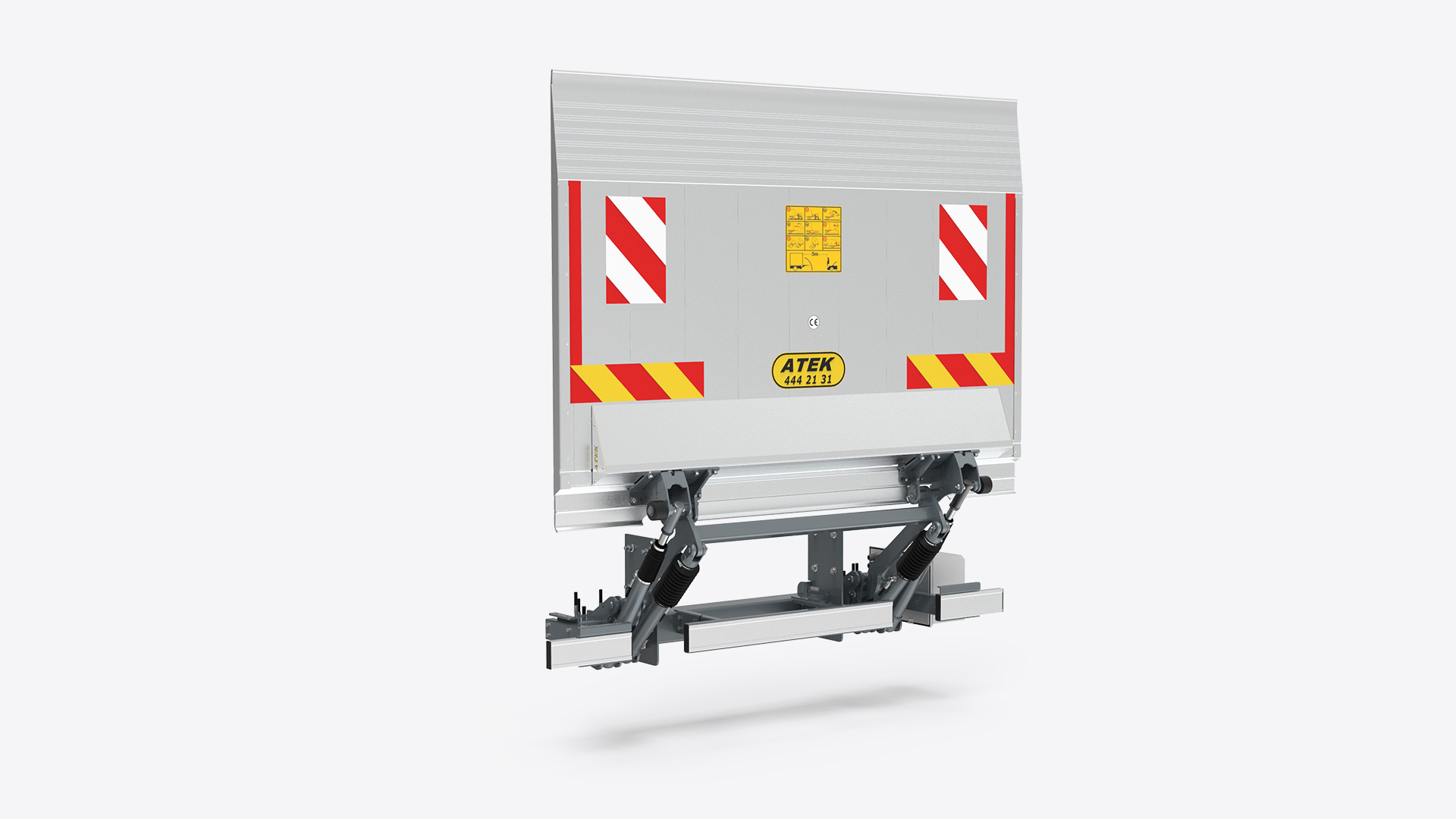

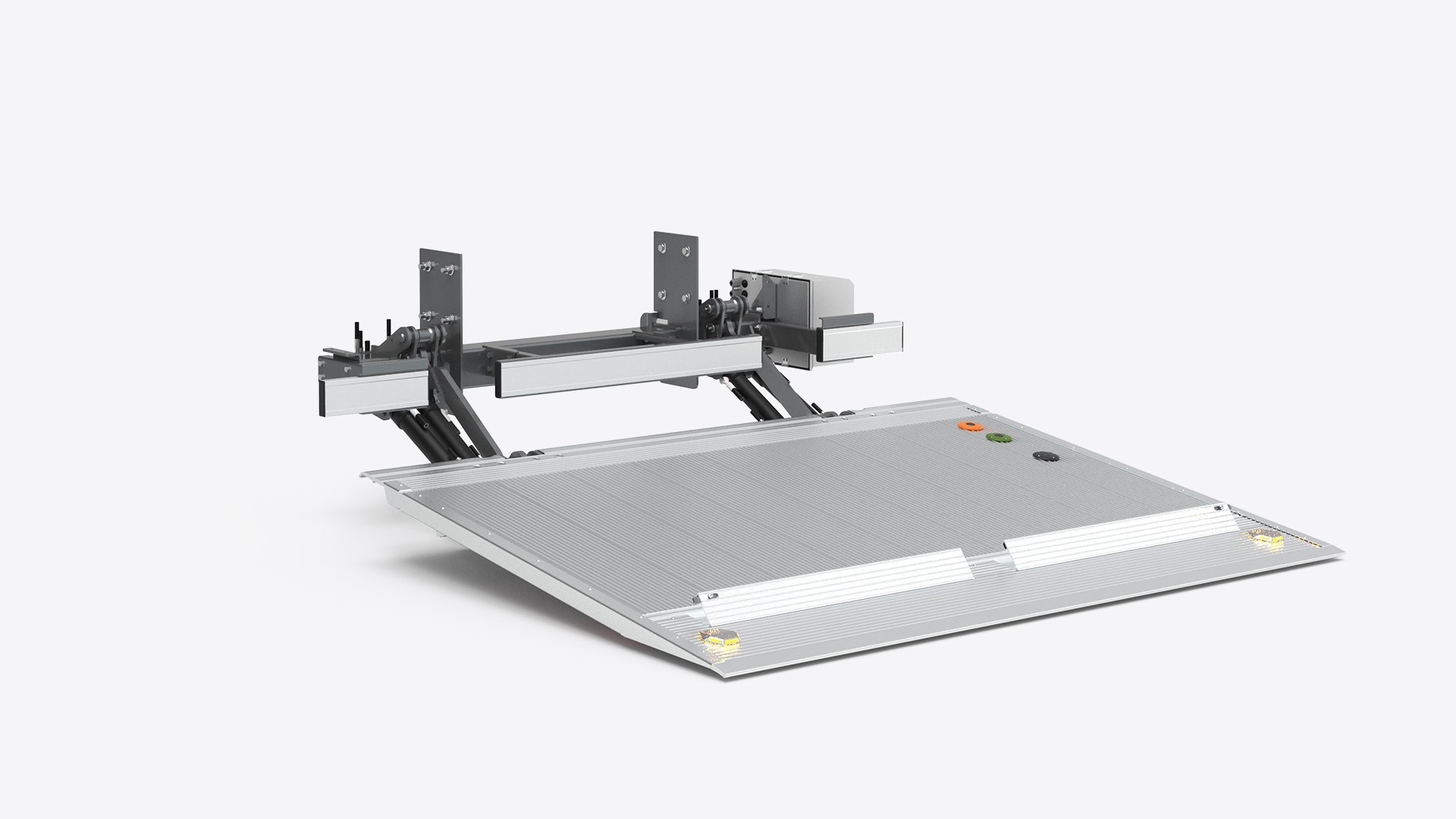

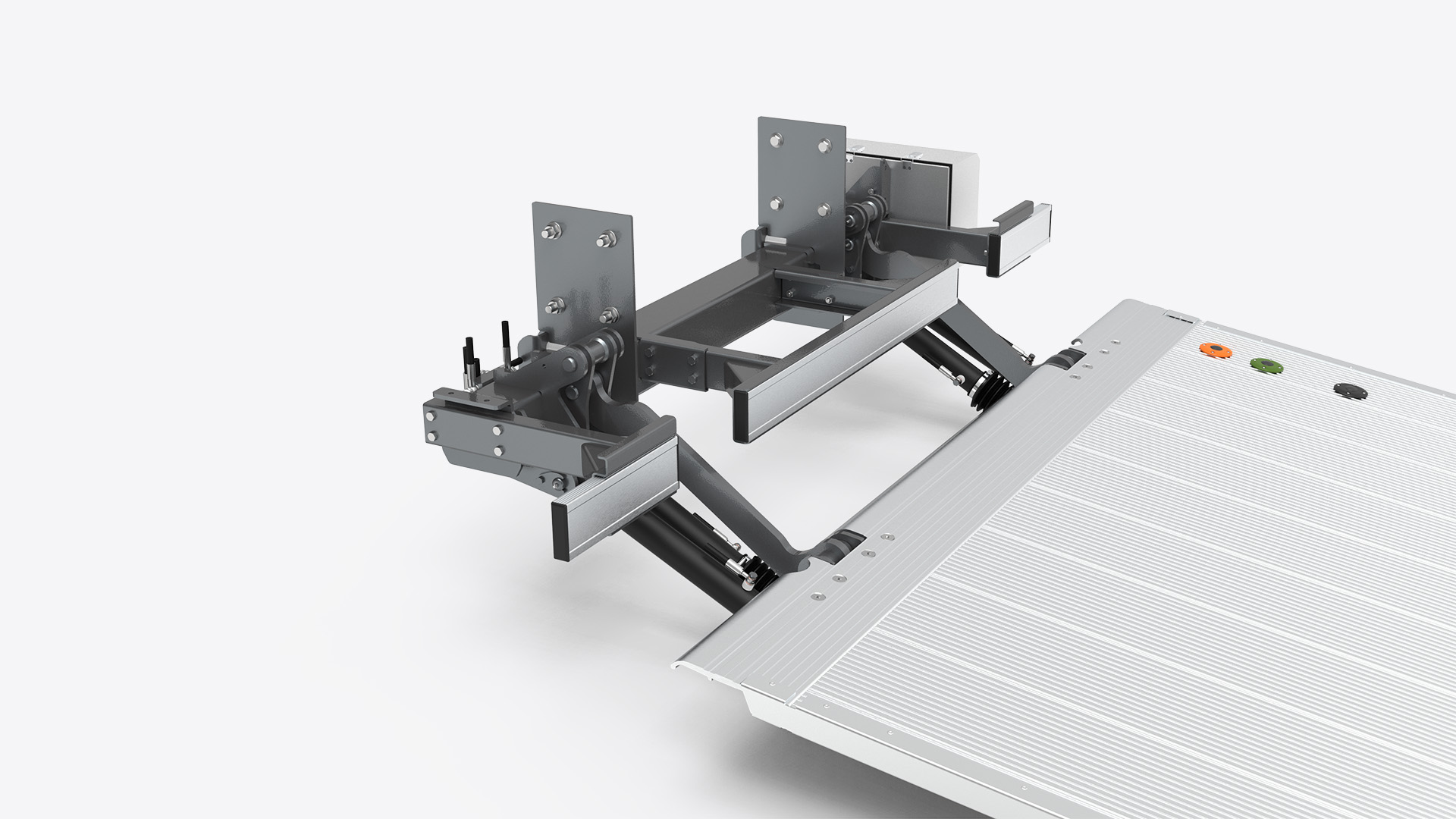

The DM 1000 Series is equipped with a four-piston hydraulic system and mechanical-type automatic folding technology. This construction maintains platform stability and provides controlled movement under load.

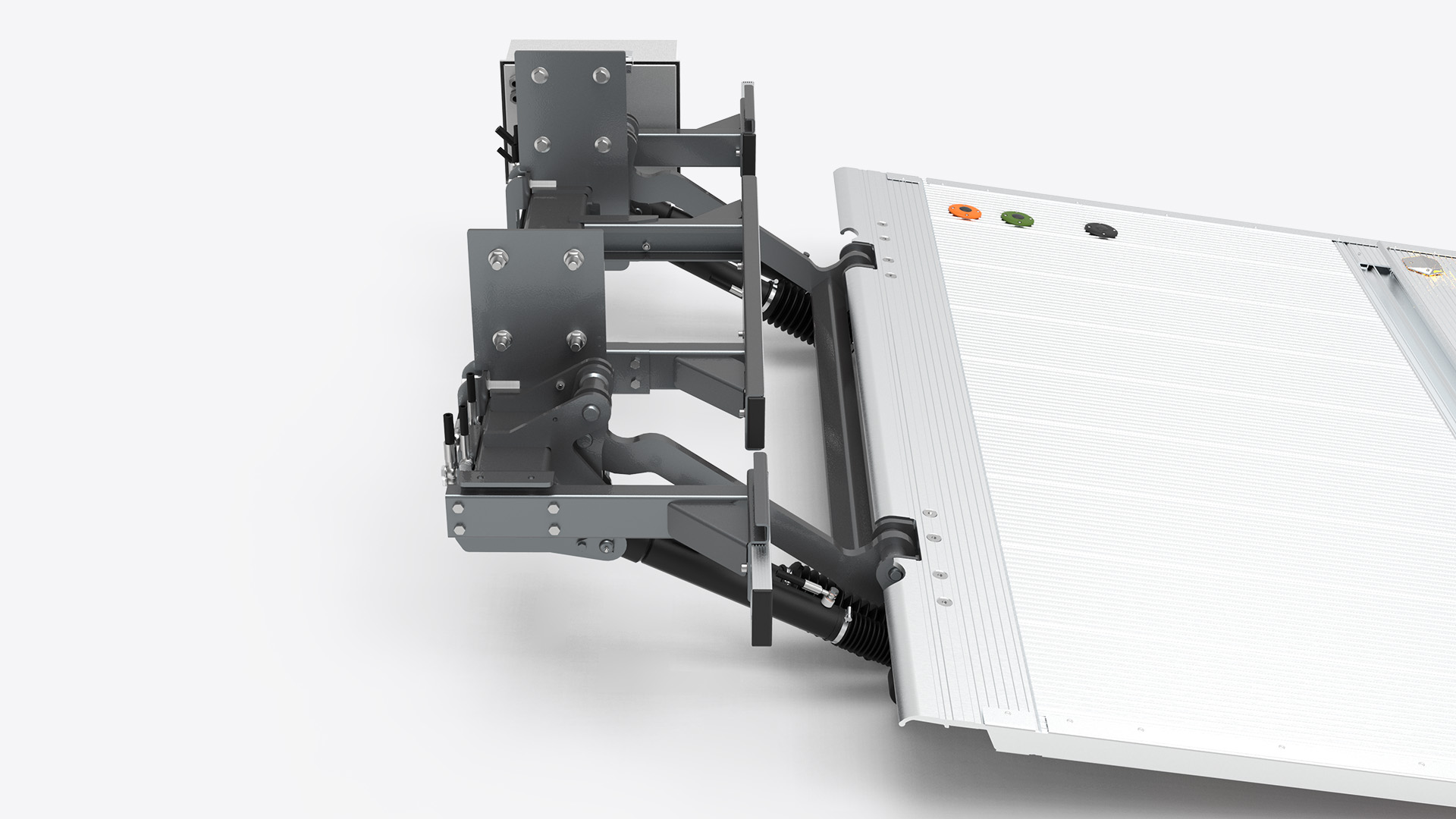

The DM 1000 Series integrates easily into the truck chassis thanks to bolt-on mounting plates. This system:

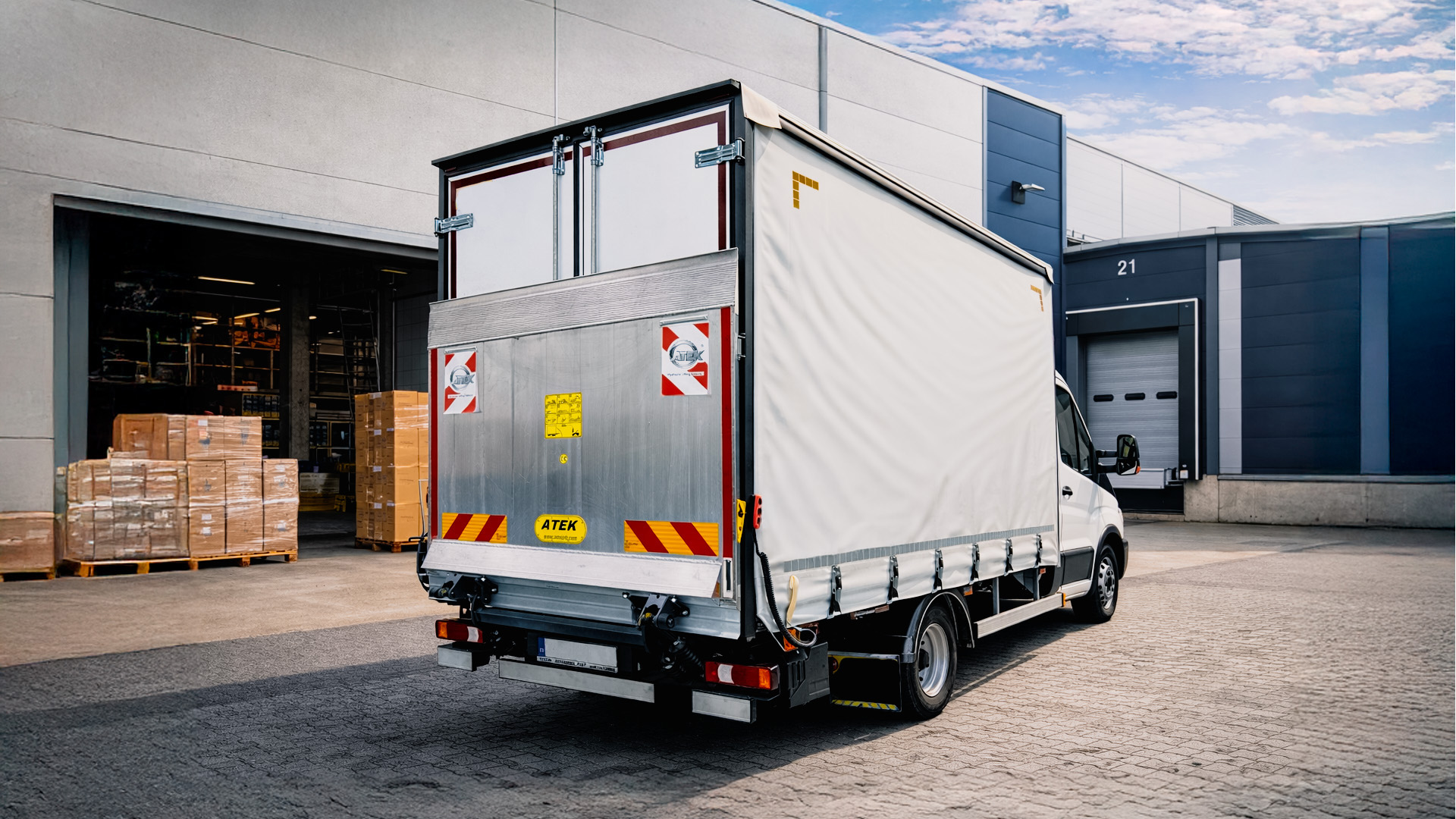

The DM 1000 Series offers a balanced solution for urban distribution operations and regional transportation needs. With its compact dimensions and reliable hydraulic system, it adapts perfectly to mid-segment truck fleets.
The DM 1000 Series is applicable to trucks of different makes and models in the 3.5–7.5 ton range. It offers broad coverage in the mid-segment commercial vehicle class.
| a(mm) | Q (kg) |
| 600 | 1000 |
| 750 | 800 |
| 950 | 600 |
| 1400 | 400 |

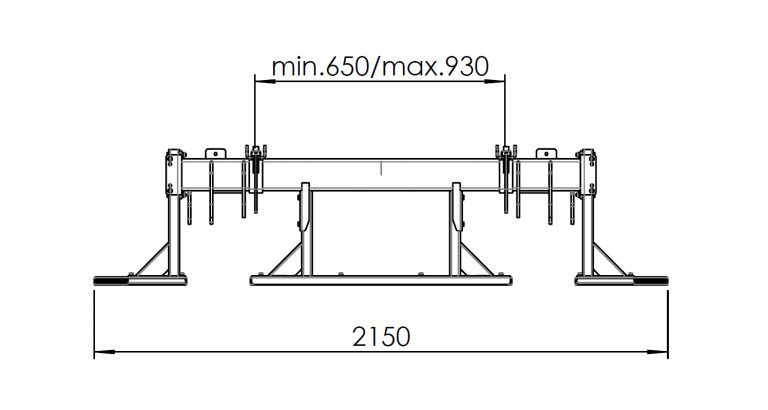

Type Width Height Net Weight ALM30 2200mm 1800mm 112kg ALM30 2200mm 1600mm 102kg ALM30 2200mm 1400mm 85kg ALM30 2200mm 1200mm 75kg

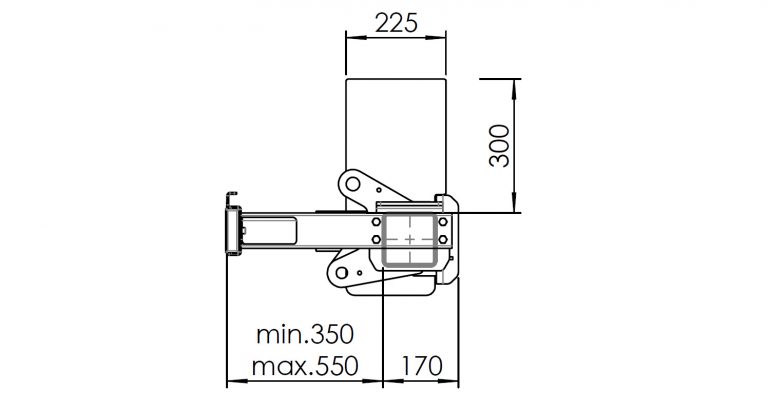

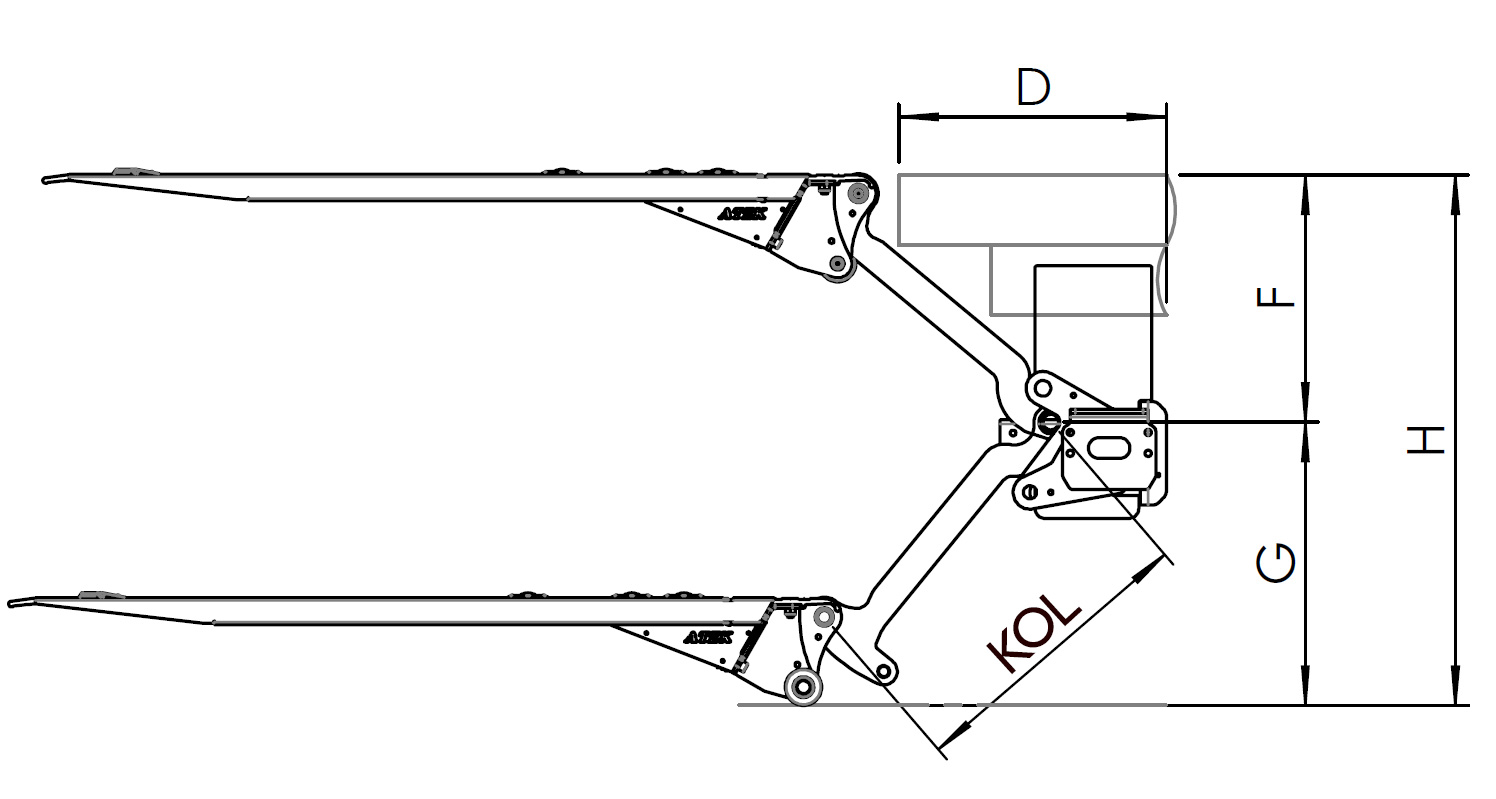

Arm Lengths 575mm 650mm 750mm H 940mm 1060mm 1185mm F(max) 465mm 510mm 575mm F(min) 250mm 250mm 300mm G(max) 475mm 550mm 620mm D(max) 685mm 745mm 815mm D(min) 525mm 575mm 660mm
